KHS Team 29 F/S

KHS Team 29 F/S
Color: Matte Black
Size: 19-inch

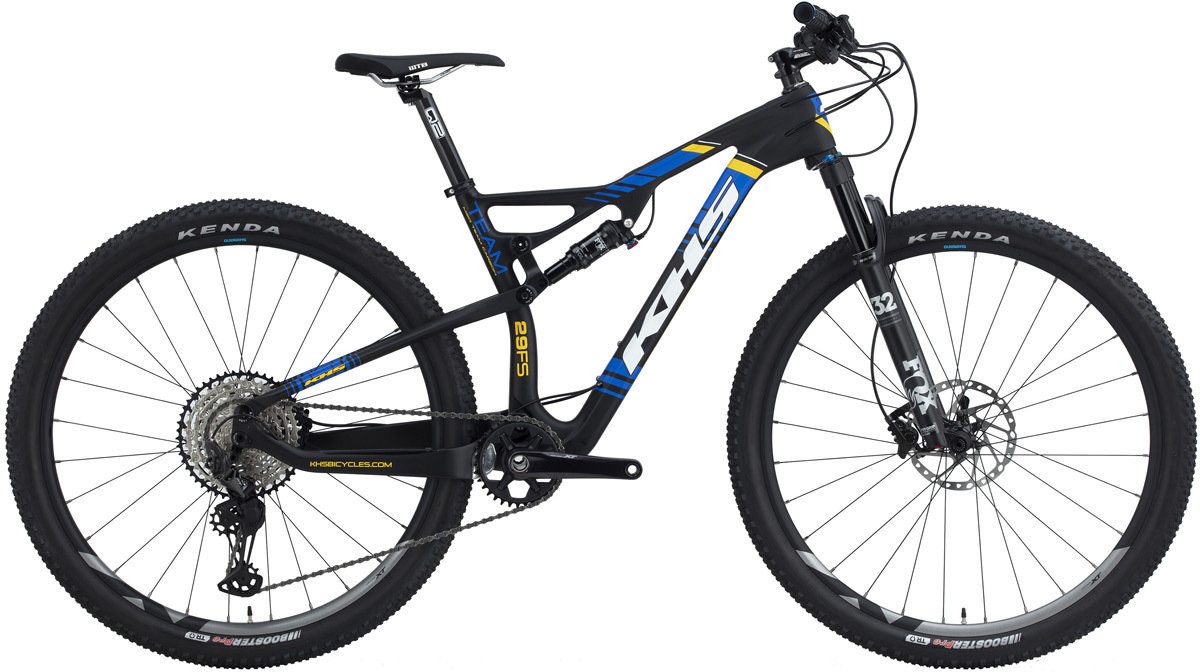

The KHS Team 29 FS puts you one step closer to the podium thanks to a light and stiff MSD carbon frame featuring 100mm of rear travel paired with a 100mm Fox Float 32 fork. Mavic Crossmax Light 29-inch wheels back the frame's responsiveness with great rollover capability and speed, while Shimano hydraulic disc brakes offer precise control through the corners. Shimano's legendary XT 12-speed drivetrain keeps you on the gas with quick and smooth shifting. This race-ready build puts you comfortably in command with a Q2 carbon seatpost, FSA SLK carbon handlebar, and a WTB SL8 Pro saddle.


Frame New 29" Full MSD Carbon, 100mm Travel, 1-1/8-1.5 Taper, 12 x 148mm Boost, PF92, 27.5 Plus Compatible
Fork FOX Float 32, 29 Std/27.5+, Evol Air, Performance, 100mm, Fit4, 2-Pos Remote Lock Out, Ext Rebound Adj., 1-1/8-1.5 Taper, 15mm x 110 QR Boost
Headset FSA Orbit C-40-/48CF, N.42/48CF, 1-1/8"-1.5" Integrated, Carbon Cap
Rear Shock FOX Float DPS, Performance Elite, 2-Pos Remote, Evol Carbon Cap
Axles Front: 15x110mm
Rear: 12x148mm
Rims/Wheels Shimano XT WH-M8100 12S, 29" Disc, Straight Pull w/ 15mm x 110mm Boost Ft & 12mm x 148mm Boost RR Thru-Axle, Center Lock, Tubeless Ready
Hubs Shimano XT WH-M8100, 15mm x 110 Boost F, 12mm x 148 Boost R, Wheel Set
Spokes Shimano XT WH-M8100, Wheel Set
Tires Kenda Booster Pro, 120TPI Folding, Tubeless Ready, 29 x 2.2
Crankset Shimano New XT M8100, 2pc Hollowtech II, Boost, PF92, S: 170, M-L: 175
Chainrings 34T
Bottom Bracket FSA PF92, BB-CFM92
Chain Shimano CN-M7100 S: 170, M-L: 175
Rear Derailleur Shimano New XT RD-M8100
Cassette/Rear Cogs Shimano CS-M7100, 10-51T, 12-Speed
Shifters Shimano New XT, SL-M8100, 12s, Trigger, Right Only, I-Spec II
Handlebars FSA SLK CSI, Low Riser, 760mm x 18mm, 31.8mm M-L: 80mm
Tape/Grips Q2 Lock-on
Stem FSA Afterburner, 3D Forged, CNC, 4-Bolt, 6D, 31.8 S: 70mm, M-L: 80mm
Brake Levers Shimano MT501, Servo Wave w/ I-Spec II Rotors, RT64 Center Lock
Brakes Shimano MT501, Hydraulic Disc, Servo Wave, 180/160mm, Rotors, RT64 Center Lock
Saddle WTB SL8 Pro, 142mm
Seat Post Q2 Carbon, 31.6 x 350mm

* Subject to change without notice.


Part Numbers

Option UPC MPN
Matte Black / 19-inch 756928908262 901720002
